Product Overview

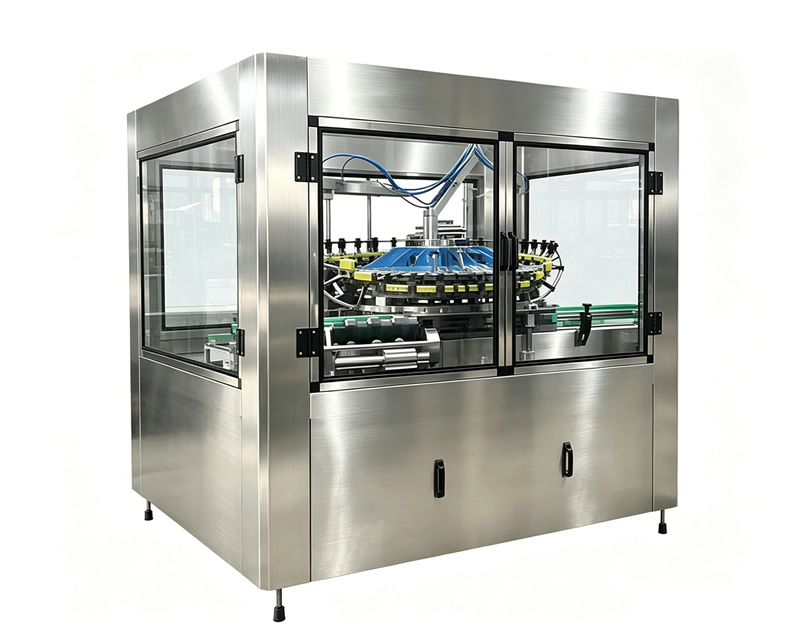

This bottle washing machine is designed for automatic cleaning of both inner and outer surfaces of cylindrical bottles made of various materials, including standard glass bottles and plastic bottles.
It adopts a rotary disc type structure. Bottles delivered from the upstream bottle feeder enter the machine via the conveyor belt, and are separated individually by the screw distributing mechanism. Then bottles enter the infeed turntable in sequence, and are gripped and flipped by the clamping mechanism so that all bottle mouths face downward uniformly.
During rotary conveying, bottles go through purified water flushing and clean compressed air blowing in sequence to complete the full cleaning process. After cleaning, finished bottles are transferred to the outfeed turntable, then discharged onto the outlet conveyor belt and delivered to subsequent processes.
Equipment Features
- High-efficiency continuous rotary operation Rotary disc structure enables continuous bottle infeed and outfeed. Production capacity ranges from 60 to 200 bottles per minute, with stable and reliable operation, perfectly matching medium and large scale production lines.
- Two-stage thorough cleaning process Combines high-pressure purified water rinsing and clean compressed air blow-drying. It effectively removes dust, impurities and residual moisture from both inner and outer bottle surfaces, ensuring high and consistent cleaning quality.
- Stable automatic flipping mechanism Dedicated clamping and flipping mechanism automatically turns all bottles to uniform mouth-down position. It grips bottles stably without dropping or damaging containers, even under high-speed continuous operation.
- Broad bottle adaptability Compatible with 50–1000ml glass bottles and plastic bottles. It can be flexibly adjusted to fit different bottle diameters and heights, with strong adaptability to diversified product requirements.
- Food-grade hygienic construction All parts in contact with bottles and cleaning medium are made of food-grade stainless steel, which is corrosion-resistant, easy to clean and sanitize, fully complying with food and pharmaceutical production hygiene standards.
- Fully automatic in-line integration Can be seamlessly connected with upstream bottle feeding equipment and downstream filling machines. The entire cleaning process runs fully automatically without manual intervention, which improves production efficiency and reduces labor cost.
Working Principle
Bottles enter the machine through the inlet conveyor, and are evenly separated into single bottles by the screw distribution mechanism, then fed into the infeed turntable one by one.

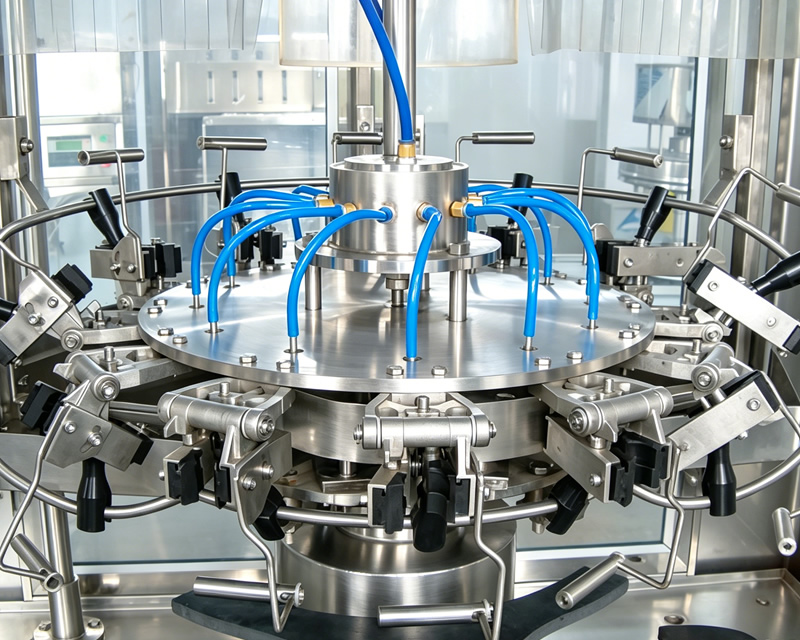

The clamping mechanism grips each bottle and flips it to a mouth-down orientation. As the main rotary turntable rotates, bottles first pass through the purified water rinsing station, where high-pressure purified water flushes both inner and outer bottle walls to thoroughly remove dust and impurities.
After rinsing, bottles move to the air blowing station, where clean dry compressed air blows off residual water droplets inside and outside the bottles. Finally, bottles are flipped back to the upright position at the outfeed turntable and discharged onto the outlet conveyor, completing the whole automatic bottle cleaning process.
Technical Parameters
| Item | Specification |
|---|---|
| Applicable Bottle Range | 50 – 1000 ml glass bottles / plastic bottles |
| Production Capacity | 60 – 200 bottles/min |
| Power Supply | 220 / 380V, 50Hz |
| Installed Power | 3 kW |
| Water Consumption | 0.6 – 1.5 m³/h @ 0.25 MPa |
| Air Consumption | 45 m³/h @ 0.25 MPa |
| Overall Dimensions (L×W×H) | 3500 × 1800 × 1750 mm |
Data is for reference only. Specifications are subject to change due to continuous R&D improvement.
Application Fields
- Beverage industry: Pre-filling cleaning of glass and plastic bottles for fruit juice, tea drinks, carbonated beverages, wines and other bottled drinks
- Food & condiment industry: Bottle cleaning for sauces, condiments, canned food, dairy products and other food packaging containers
- Pharmaceutical industry: Cleaning of medicine bottles, infusion bottles and pharmaceutical packaging containers with high hygiene requirements
- Daily chemical industry: Cleaning of glass and plastic packaging bottles for cosmetics, toiletries and daily chemical products
- Other industries: Automatic cleaning of various cylindrical standard bottles in chemical, agricultural and other light industry sectors
