Product Overview
The disc centrifuge achieves separation based on the principle that materials of different specific gravities are subjected to different centrifugal forces inside the high-speed rotating bowl. Its advanced automatic control system gives it outstanding comprehensive advantages over conventional separation equipment.

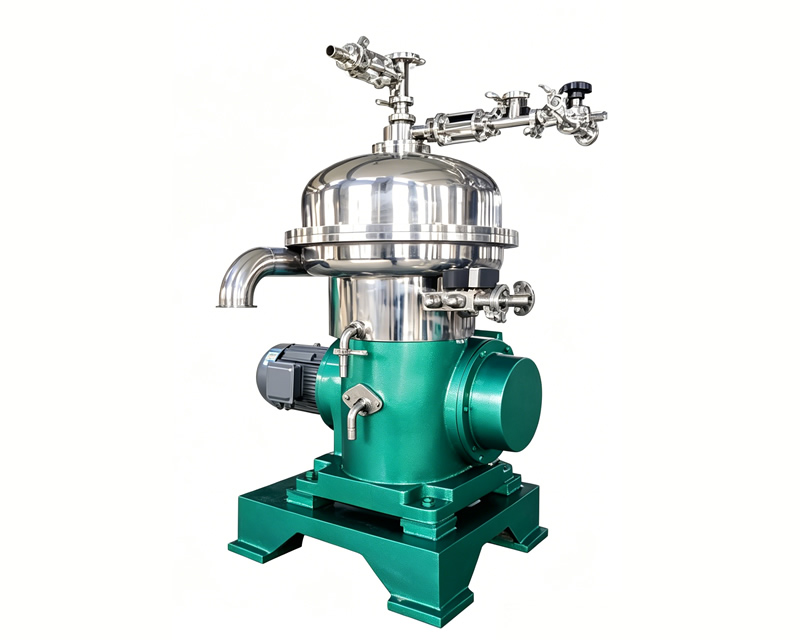

The DHC automatic slag discharge model is available in two configurations: solid-liquid two-phase separation type and liquid-liquid-solid three-phase separation type. With all-stainless steel product-contact structure and precision-balanced rotating assembly, it delivers stable separation performance, reliable operation and good sanitary performance, and is widely used for clarification, purification and separation processes in various industrial fields.
Working Principle
Driven by the motor, the bowl assembly rotates at high speed around the main shaft. Feed liquid flows into the bottom of the bowl through the central feed pipe from the upper part, and is evenly distributed toward the bowl wall through the diversion channels under the disc stack.
Under the strong centrifugal force field generated by high-speed rotation, solid particles with higher specific gravity settle rapidly on the inner wall of the bowl to form a sediment layer. Light liquid flows along the outer conical surface of the disc stack toward the central axis, rises to the upper chamber and is discharged through the light liquid outlet by the light liquid centripetal pump. Heavy liquid flows along the inner conical surface of the disc stack toward the bowl wall, then flows upward and is discharged through the heavy liquid outlet by the heavy liquid centripetal pump, thus completing precise separation of heavy liquid, light liquid and solid phase.
The automatic slag discharge mechanism can periodically discharge accumulated sediment without stopping the machine, realizing long-term continuous and unattended production operation.
Equipment Features
- High-efficiency & high-capacity separation Equipped with high-precision multi-layer disc stack structure, it provides large equivalent settling area and excellent separation precision. It has large processing capacity and is perfectly suitable for large-scale continuous industrial production lines.
- High degree of automation Adopts an advanced automatic control system with automatic periodic slag discharge function. It can run continuously for a long time without frequent manual slag removal, which greatly reduces labor intensity and improves overall production efficiency.
- Flexible process configuration Available in both solid-liquid two-phase separation model and liquid-liquid-solid three-phase separation model. It can be flexibly selected and customized according to actual material properties and process requirements, with wide application adaptability.
- Stable & reliable operation The rotating assembly is precision balanced to ensure smooth operation with low vibration and low noise. The whole machine has compact structure, stable performance and long service life.
- Hygienic food-grade construction All product-contact parts are made of high-quality stainless steel, which is corrosion-resistant and easy to clean and sanitize, fully meeting the strict hygiene requirements of food, pharmaceutical and biological product industries.
- Easy operation & maintenance Reasonable structural design with convenient daily maintenance and component replacement. It has low failure rate and low long-term operation cost.
Technical Parameters
Core Performance Parameters
| Model | Bowl Speed (rpm) | Equivalent Settling Area (m²) | Throughput Capacity (L/h) |
|---|---|---|---|
| DHC300 | 8212 | 17.2×10⁷ | 1250 |
| DHC400 | 7070 | 27×10⁷ | 3500 |
| DHC500 | 6600 | 63×10⁷ | 8000 |
| DHC550 | 5840 | 76×10⁷ | 10000 |
| DHC630 | 5170 | 82×10⁷ | 12000 |
| DHC730 | 4500 | 90×10⁷ | 20000 |
Power, Dimensions & Weight
| Model | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| DHC300 | 4.0 | 1050×850×1200 | 580 |
| DHC400 | 7.5 | 1495×1130×1485 | 1280 |
| DHC500 | 15 | 1780×1500×1900 | 1720 |
| DHC550 | 22 | 1950×1550×1960 | 2300 |
| DHC630 | 37 | 2185×1728×2082 | 3000 |
| DHC730 | 45 | 2380×1730×2060 | 3400 |
Note: Motor model can be customized according to actual power supply requirements. Data is for reference only. Specifications can be fully customized according to actual process requirements.
Application Fields
- Pharmaceutical industry: Separation of pharmaceutical liquids, antibiotic fermentation broth, biological preparations, blood products and other pharmaceutical materials.
- Food & beverage industry: Clarification of fruit juice, beverages, beer, wine, edible oil and dairy products; separation of pulp, yeast and other impurities.
- Biological products industry: Separation and purification of biological extracts, enzyme preparations, microbial fermentation broth and other biological products.
- Chemical industry: Separation of chemical suspensions, oil-water separation, dye and pigment separation and other liquid-solid / liquid-liquid separation processes.
- Oil & fat industry: Clarification and purification of vegetable oil, animal oil, mineral oil and various oil products.
- Other industries: Liquid clarification, impurity removal and separation processes in environmental protection, daily chemical, coating and other industrial sectors.
