Product Brief

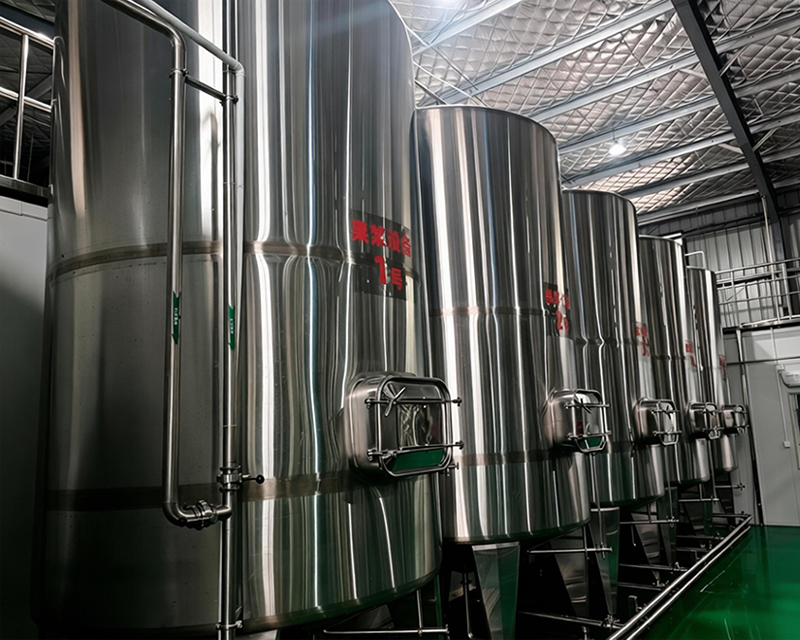

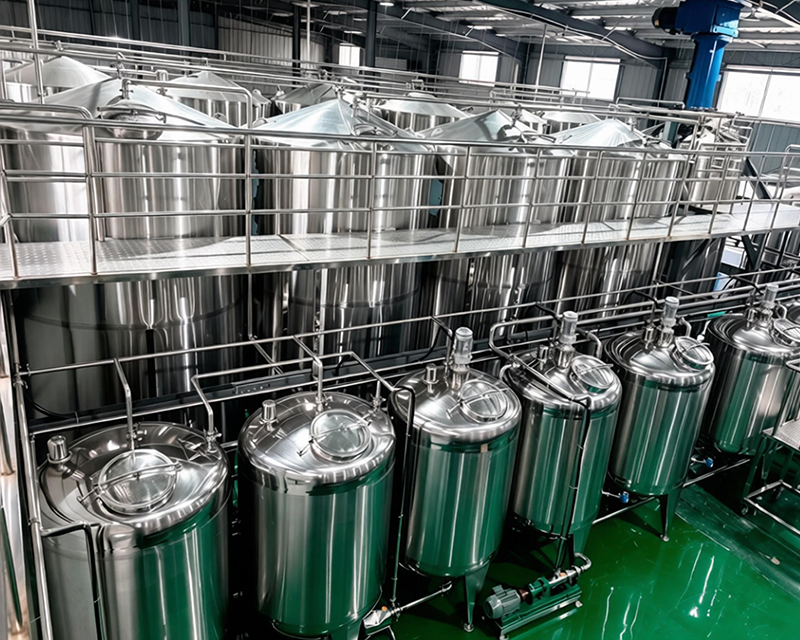

This DG series single-layer storage tank is mainly applied for temporary storage and mixing of various liquid materials in dairy, juice beverage, beer brewing, chemical and bioengineering industries. It is available in both non-agitating and agitating configurations with multiple impeller types to match different process demands. Fabricated with food-grade stainless steel and hygienic structure, it features reliable performance, easy operation and flexible configuration, serving as universal storage and mixing equipment for liquid processing production lines.
Technical Description
- Material: Fully made of high-quality SUS304-2B or SUS316L stainless steel, cylinder wall thickness: 3–4mm.
- Structure Features: Single-layer cylindrical tank body, supported by triangular or cylindrical support legs.
- Agitation Options: Available in non-agitating or agitating version. Agitation types include paddle type, anchor type, propeller type and frame type.
Standard Configuration
- Closed manhole
- Fly and insect-proof breathable cap
- PT100 digital thermometer
- CIP cleaning ball
- Material inlet and outlet ports
- Lever valve
- Adjustable triangular support legs
- Sampling valve
Technical Parameters
| Model | Effective Volume (L) | Cylinder Size (mm) | Total Height (mm) | Plate Thickness (mm) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|---|---|
| DG-600 | 600 | 900×1000 | 1950 | 3 | φ38 / φ51 |
| DG-1 | 1000 | 1150×1000 | 1950 | 3 | φ38 / φ51 |
| DG-1.5 | 1500 | 1160×1500 | 2450 | 3 | φ38 / φ51 |
| DG-2 | 2000 | 1400×1220 | 2350 | 3 | φ38 / φ51 |
| DG-3 | 3000 | 1600×1500 | 2450 | 3 | φ38 / φ51 |
| DG-4 | 4000 | 1620×2000 | 2950 | 3 | φ38 / φ51 |
| DG-5 | 5000 | 1800×2000 | 2950 | 3 | φ38 / φ51 |
| DG-6 | 6000 | 1950×2000 | 2950 | 3 | φ38 / φ51 |
| DG-8 | 8000 | 2060×2400 | 3350 | 4 | φ65 / φ51 |
| DG-10 | 10000 | 2300×2400 | 3350 | 4 | φ65 / φ51 |
| DG-12 | 12000 | 2270×3000 | 3950 | 4 | φ65 / φ51 |
| DG-15 | 15000 | 2530×3000 | 3950 | 4 | φ65 / φ51 |
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields
- Dairy industry: Temporary storage and mixing of fresh milk, liquid dairy products and milk-based ingredients
- Beverage industry: Storage and blending of juice, tea beverage, syrup and other liquid raw materials
- Brewing industry: Temporary storage and process transfer of beer, fruit wine and fermentation broth
- Food processing industry: Storage and mixing of liquid condiments, plant extracts and food additives
- Chemical & bioengineering: Storage and mixing of liquid raw materials, intermediate products and process solutions in chemical, pharmaceutical and bioengineering fields
