Description

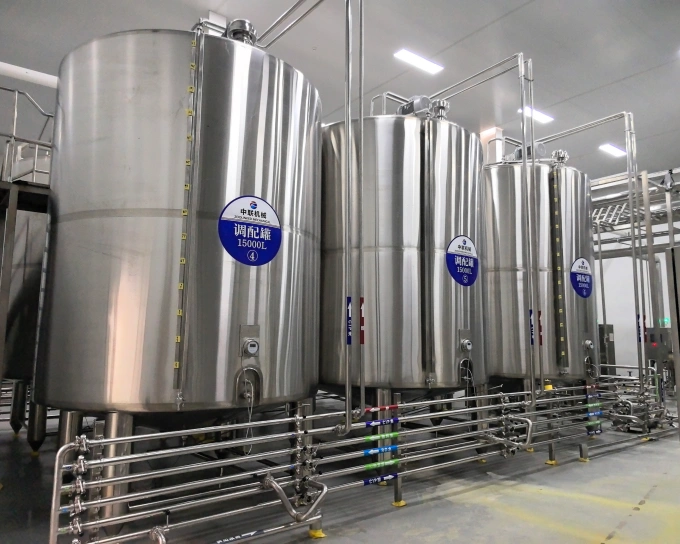

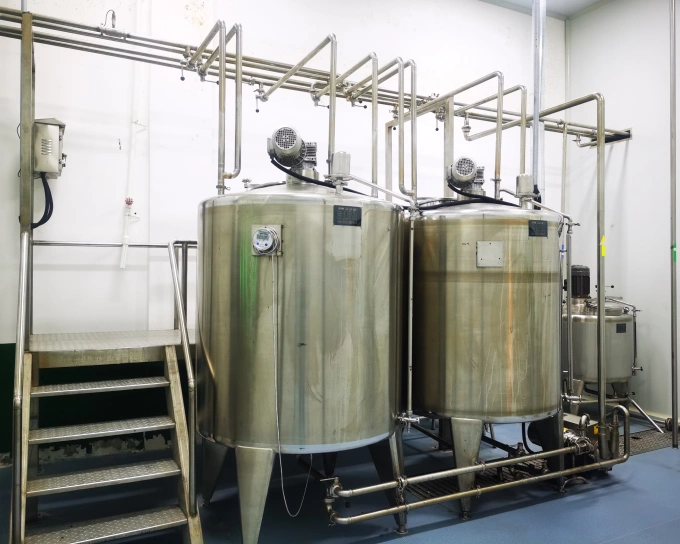

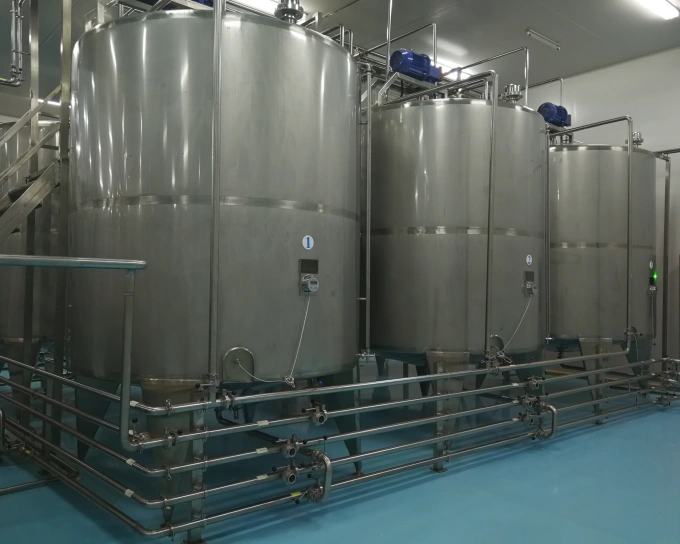

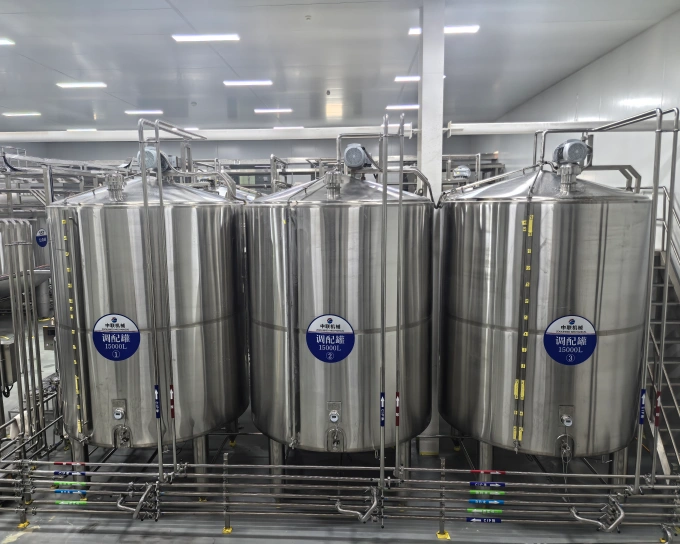

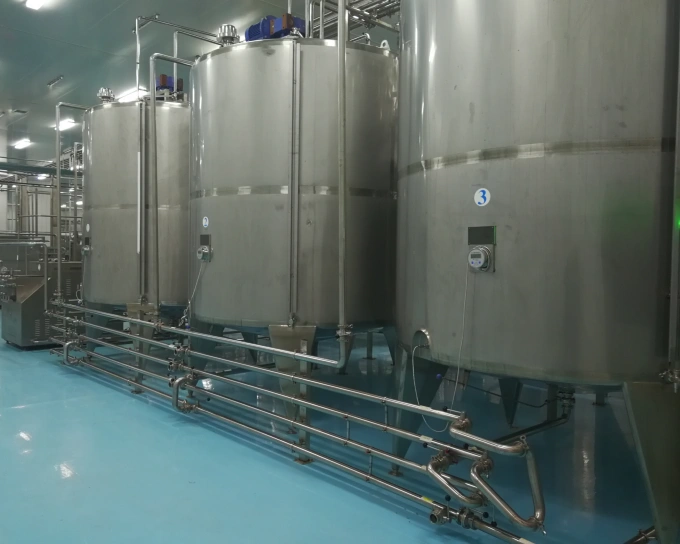

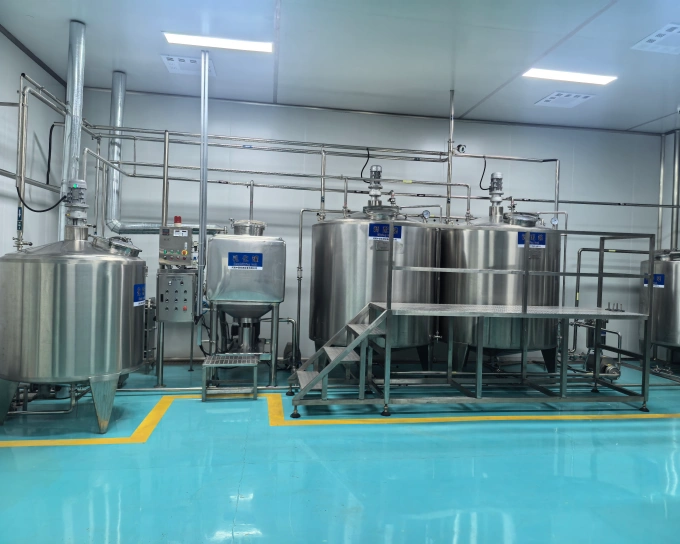

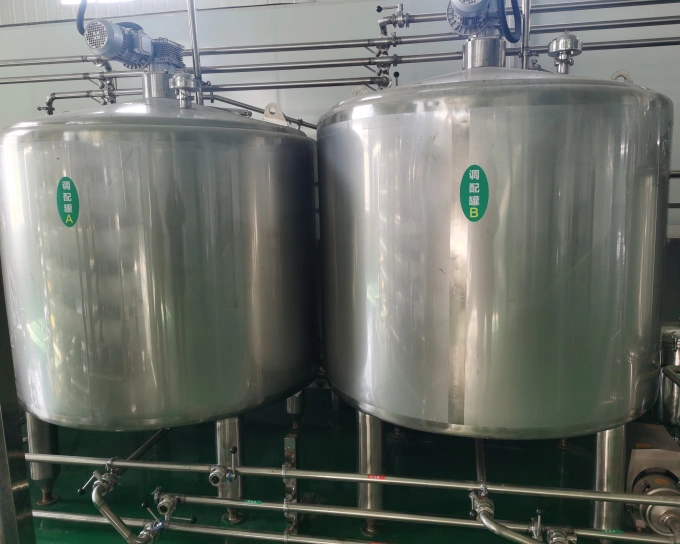

The magnetic stirring tank—also known as a compounding tank, mixing tank, or blending vessel—offers numerous advantages, including energy efficiency, corrosion resistance, high production capacity, ease of cleaning, and a simple structural design. It is primarily utilized to ensure the uniform mixing of ingredients—such as dairy products, sugar, various trace elements, and other compounds—after they have been combined. Consequently, it serves as indispensable equipment for manufacturers in the dairy, beverage, and pharmaceutical industries.
Parameter
| Models | Effective volume (V) | Cylinder size(mm) | Total height (H) | Sheet thickness | Inlet and outlet caliber |
| DG-600 | 600 | 900×1000 | 1950 | 3 | Φ38/Φ51 |
| DG-1 | 1000 | 1150×1000 | 1950 | 3 | Φ38/Φ51 |
| DG-1.5 | 1500 | 1160×1500 | 2450 | 3 | Φ38/Φ51 |
| DG-2 | 2000 | 1400×1220 | 2350 | 3 | Φ38/Φ51 |
| DG-3 | 3000 | 1600×1500 | 2450 | 3 | Φ38/Φ51 |
| DG-4 | 4000 | 1620×2000 | 2950 | 3 | Φ38/Φ51 |
| DG-5 | 5000 | 1800×2000 | 2950 | 3 | Φ38/Φ51 |
| DG-6 | 6000 | 1950×2000 | 2950 | 3 | Φ38/Φ51 |
| DG-8 | 8000 | 2060×2400 | 3350 | 4 | Φ65/Φ51 |
| DG-10 | 10000 | 2300×2400 | 3350 | 4 | Φ65/Φ51 |
| DG-12 | 12000 | 2270×3000 | 3950 | 4 | Φ65/Φ51 |
| DG-15 | 15000 | 2530×3000 | 3950 | 4 | Φ65/Φ51 |
Application
- It can function as a liquid storage tank, mixing tank, buffer tank, water storage tank, or similar vessel.
- It is suitable for applications in various fields, including food processing, dairy production, fruit juice and beverage manufacturing, pharmaceuticals, chemical engineering, and bioengineering.
Configuration
- Quick-opening manhole.
- CIP (Clean-in-Place) spray balls in various configurations.
- Sanitary, insect-proof air vent hood.
- Adjustable triangular support legs.
- Removable inlet pipe assembly.
- Thermometer (configured according to customer requirements).
- Access ladder (configured according to customer requirements).
- Paddle-type agitator.
- Liquid level gauge and level control system (configured according to customer requirements).
- Anti-vortex baffle plates.
