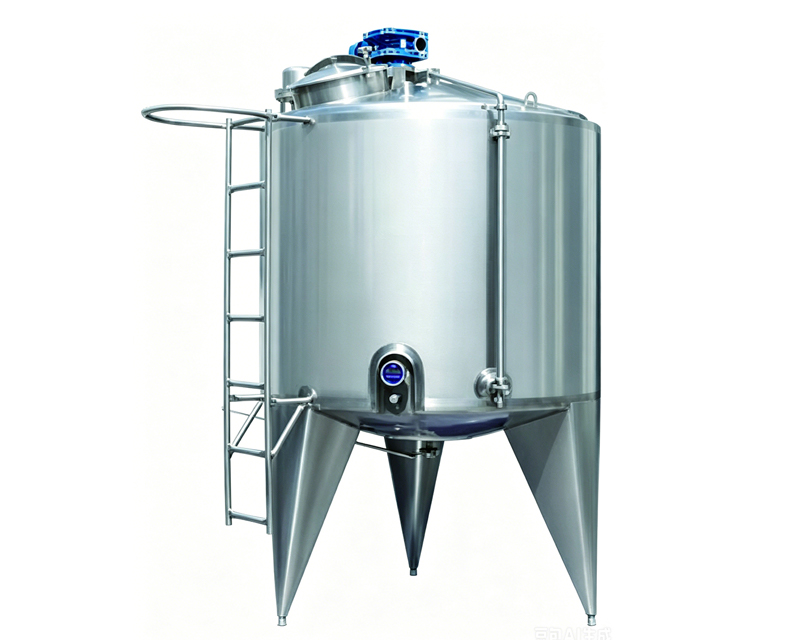

Technical Description
- Material: Fully made of high-quality SUS304-2B or SUS316L stainless steel. Inner tank thickness: 3–4mm; outer shell thickness: 2mm.
- Structure Features: Double-layer structure with PU insulation layer of 50–60mm thickness; cylindrical tank body supported by triangular or cylindrical legs; available in non-agitating or agitating version with paddle, anchor, propeller and frame type impellers.
Standard Configuration
- Closed manhole
- Fly and insect-proof breathable cap
- PT100 digital thermometer
- CIP cleaning ball
- Material inlet and outlet ports
- Lever valve
- Adjustable triangular support legs
- Sampling valve
Technical Parameters
| Model | Effective Volume (L) | Cylinder Size (mm) | Total Height (mm) | PU Insulation Thickness (mm) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|---|---|
| SG-600 | 600 | 850×1000 | 1950 | 50 | φ38 / φ51 |
| SG-1 | 1000 | 1050×1220 | 1975 | 50 | φ38 / φ51 |
| SG-1.5 | 1500 | 1160×1500 | 2450 | 50 | φ38 / φ51 |
| SG-2 | 2000 | 1300×1500 | 2450 | 50 | φ38 / φ51 |
| SG-3 | 3000 | 1400×2000 | 2950 | 50 | φ38 / φ51 |
| SG-4 | 4000 | 1600×2000 | 2950 | 50 | φ38 / φ51 |
| SG-5 | 5000 | 1780×2000 | 2950 | 50 | φ38 / φ51 |
| SG-6 | 6000 | 1900×2000 | 2950 | 50 | φ38 / φ51 |
| SG-8 | 8000 | 2060×2400 | 3350 | 60 | φ65 / φ51 |
| SG-10 | 10000 | 2200×2400 | 3395 | 60 | φ65 / φ51 |
| SG-12 | 12000 | 2250×3000 | 3950 | 60 | φ65 / φ51 |
| SG-15 | 15000 | 2500×3000 | 3950 | 60 | φ65 / φ51 |
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.

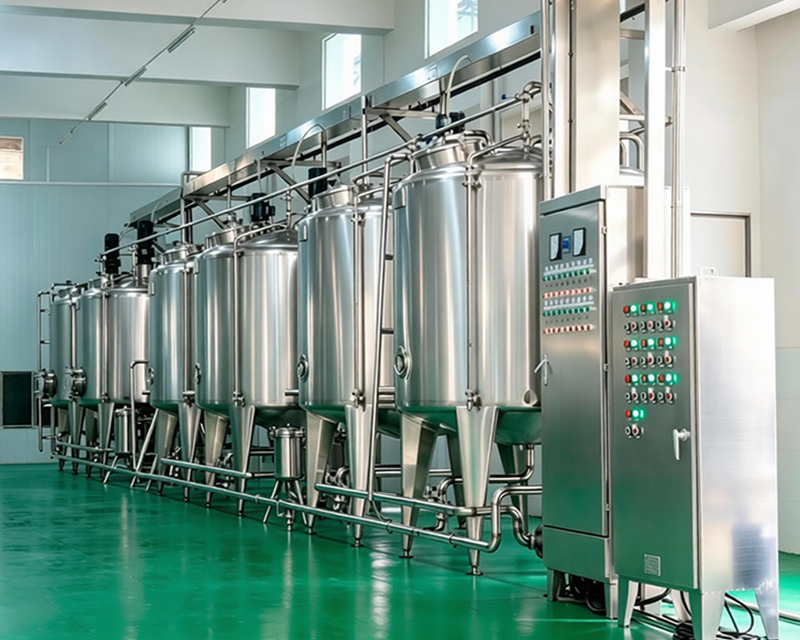

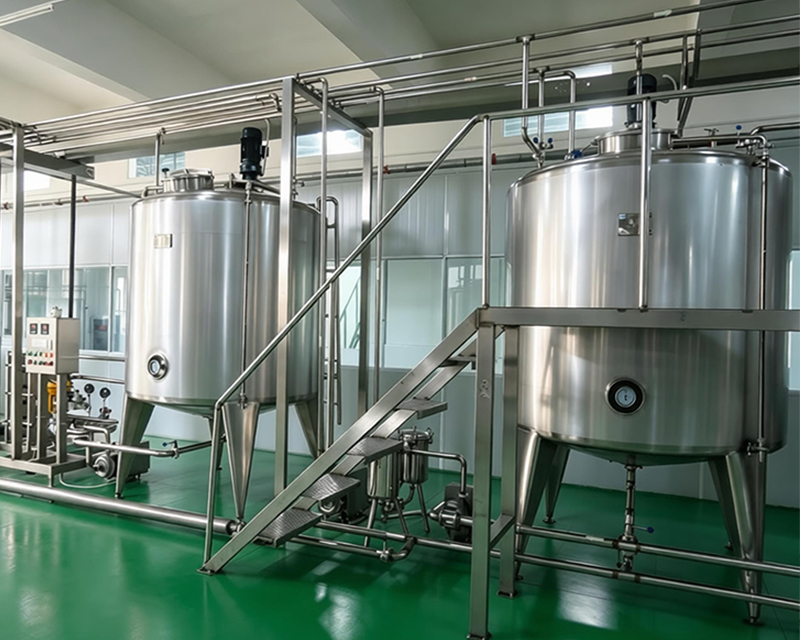

Application Fields
- Dairy industry: Insulated storage and mixing of fresh milk, liquid dairy products and milk-based ingredients
- Beverage industry: Heat-preserving storage and blending of juice, tea beverage, syrup and other temperature-sensitive liquid raw materials
- Brewing industry: Insulated storage and process transfer of beer, fruit wine and fermentation broth
- Food processing industry: Thermal insulation storage and mixing of liquid condiments, plant extracts and food additives
- Chemical & bioengineering: Insulated storage and mixing of liquid raw materials, intermediate products and process solutions in chemical, pharmaceutical and bioengineering fields
