Product Brief

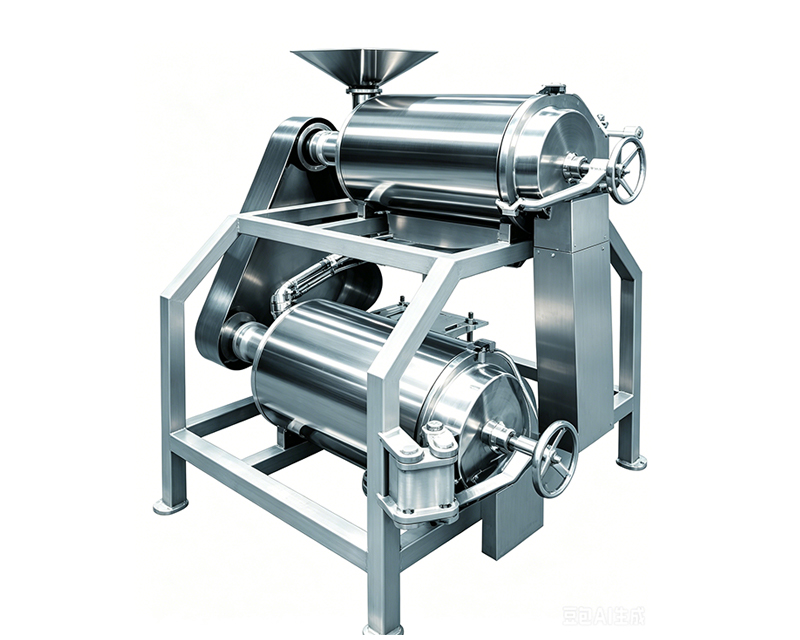

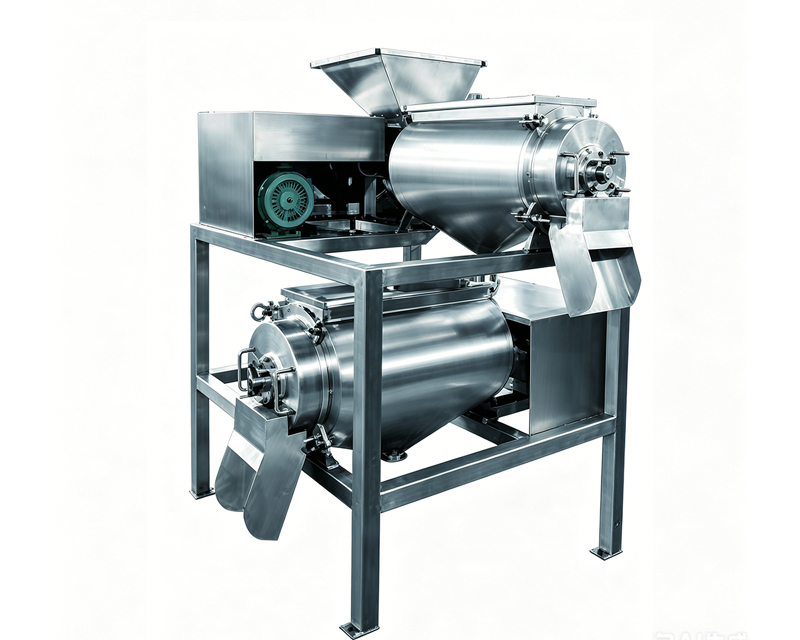

This ZL series double-channel pulper adopts two-stage series beating structure, completing coarse and fine pulping in one unit for finer pulp texture and higher pulp yield. It automatically separates peels, seeds and residues from fine pulp, with replaceable screens for adjustable fineness. Made of food-grade 304 stainless steel, it is ideal for high-quality jam, fruit puree and juice production lines pursuing fine texture and high raw material utilization.
Equipment Principle
The machine works on two-stage centrifugal beating and screening principle. Raw materials enter the first-stage pulping chamber from the hopper, where the high-speed beater performs coarse beating. Coarse residues such as peels and seeds are intercepted by the first-stage screen and discharged separately, while the primary pulp passes through the screen and flows into the second-stage pulping chamber automatically.
In the second chamber, the material undergoes secondary fine beating and screening. The finer pulp passes through the higher-density screen and is discharged from the pulp outlet, while the remaining fine residues are discharged independently. The two-stage series design achieves more sufficient pulping, finer pulp texture and higher pulp yield compared with single-channel models.
Equipment Features
- Two-stage high-quality pulping: Coarse and fine pulping completed in series, delivering finer and more uniform pulp texture with higher pulp yield than single-channel machines.
- Automatic staged residue separation: Peels, seeds and coarse fibers are automatically separated and discharged in stages, reducing subsequent filtering procedures.
- Food-grade hygienic construction: All product-contact parts are made of 304 food-grade stainless steel, corrosion-resistant, easy to clean and compliant with food safety standards.
- Adjustable pulp fineness: Replaceable screen meshes with optional apertures for both stages, flexible to match different raw materials and product requirements.
- Continuous efficient production: Continuous feeding and discharging design, stable operation, suitable for medium and large-scale industrial production lines.
- Easy cleaning & maintenance: Quick-opening chamber structure for both stages, convenient for disassembly, thorough cleaning and wearing parts replacement.
- Wide material adaptability: Suitable for mango, peach, apricot, tomato, berry, kiwi and other seeded and seedless fruits and vegetables.
- Stable durable structure: Reinforced frame and high-quality transmission system, low noise, low failure rate and long service life.
Technical Parameters
| Items | ZL-SDJ-2 | ZL-SDJ-3 |
|---|---|---|
| Processing Capacity | 1–2 t/h | 2–3 t/h |
| Total Motor Power | 5.2 KW | 7.0 KW |
| Screen Aperture | 0.4–1.5mm (customizable) | 0.4–1.5mm (customizable) |
| Overall Dimensions (mm) | 1300×600×1400 | 1600×750×1600 |
| Equipment Weight | ≈380 kg | ≈550 kg |
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields
- Fruit deep processing: Production of high-quality jam, fruit puree, fruit paste and concentrated pulp for mango, peach, apricot, strawberry and other fruits
- Beverage industry: Fine pulping pretreatment for NFC juice, compound fruit juice, vegetable juice and plant protein beverages
- Infant food industry: Processing of ultra-fine fruit and vegetable puree for baby complementary food products with high fineness requirements
- Condiment industry: Fine pulping of tomatoes, chilies, ginger and garlic for high-end sauce and seasoning production
- Frozen dessert industry: Raw material pulping for frozen pulp, ice cream, sorbet and dessert products
- Health food industry: Fine pulping and extraction of herbal raw materials and plant active ingredients
