Equipment Features

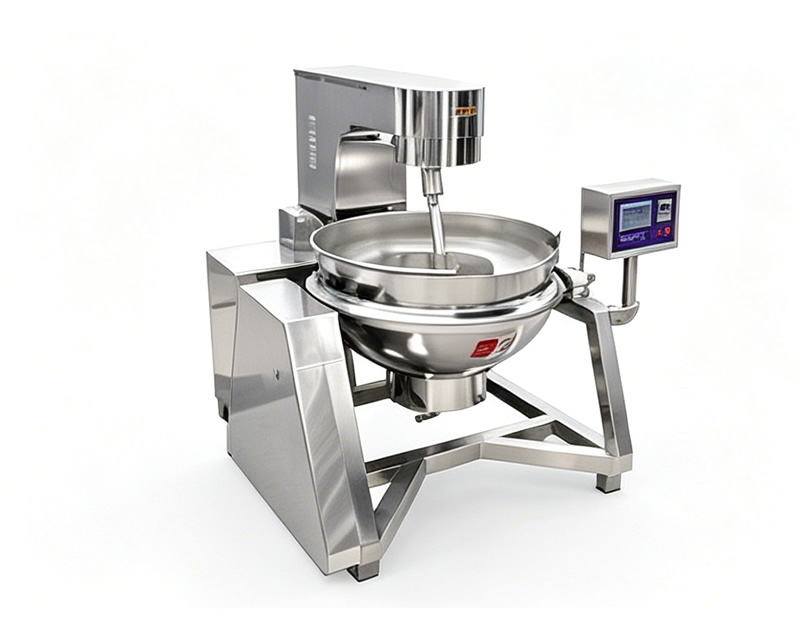

- Planetary dead-angle-free stirring The agitator performs planetary motion and fully fits the pot wall, thoroughly scraping the bottom and side of the pot to prevent material scorching, which is especially suitable for high-viscosity materials.

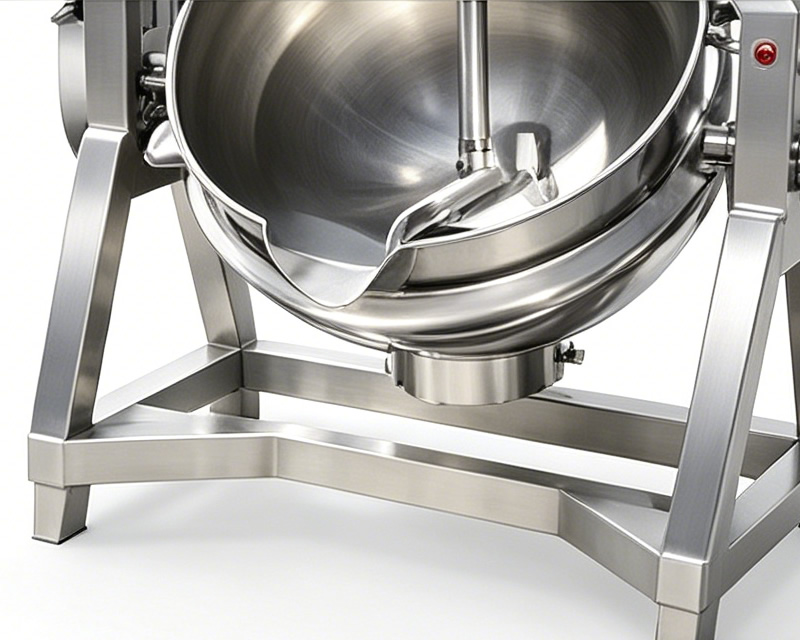

- One-piece stamped thickened pot body The hemispherical inner pot is made of thickened 304 stainless steel via one-time stamping. It is sturdy and durable with uniform heating performance, fully complying with food hygiene standards.
- Diversified heating options Supports gas (natural gas / LPG), steam, electric heating and electromagnetic heating, which can be flexibly selected according to on-site working conditions.
- Variable frequency speed regulation Stirring speed is adjustable from 0 to 40r/min via frequency conversion, adapting to the processing requirements of different materials and processes.
- Flexible control solutions Provides semi-automatic, push-button fully automatic and PLC fully automatic control modes for easy operation, suitable for production lines with different automation levels.
- Convenient discharging & cleaning Discharging is realized by rotating the handwheel. The hydraulic lifting arm can raise the stirring assembly, making material discharging and daily cleaning more convenient.
- Stable & reliable structure Sturdy overall frame with stable hydraulic system, supporting long-time continuous production with low failure rate.
Technical Parameters
Basic Model Specifications
| Specification | Inner Pot Diameter (mm) | Inner Pot Thickness (mm) | Stirring Power (kw) |
|---|---|---|---|
| 100L | 800 | 3 | 0.75 |
| 200L | 900 | 3 | 1.5 |
| 300L | 1000 | 4 | 1.5 |
| 400L | 1100 | 4 | 1.5 |
| 500L | 1200 | 5 | 2.2 |
General Configuration
| Item | Specification |
|---|---|
| Lifting Arm Power | 1.5kw |
| Stirring Speed | 0 – 40r/min, variable frequency speed regulation |
| Heating Methods | Gas (natural gas, LPG), steam, electric heating, electromagnetic heating |
| Control Modes | Semi-automatic / push-button fully automatic / PLC fully automatic |
| Discharging Method | Rotating handwheel discharging |
| Rated Voltage | 380V / 50Hz |
| Wetted Material | Food-grade 304 stainless steel |
Data is for reference only. Specifications can be customized according to actual production requirements.
Application Fields
- Food processing: Cooking and mixing of sauces, bean paste, jam, candy, dairy products, preserved fruits, fillings, pastes and other high-viscosity food products
- Central kitchen & catering: Large-scale cooking of dishes, stews, soups and condiments for central kitchens, chain catering and group meal centers
- Other industries: Processing of high-viscosity materials in pharmaceutical, daily chemical and other related industries
