Main Functions & Applications
- Cell disruption of biological cells to extract intracellular contents or develop new products
- Ultra-fine pulverization of immiscible two-phase materials (liquid-liquid or liquid-solid) to prepare stable emulsions or dispersions
- Refining processing of various other materials
It is widely applied in food, beverage, bioengineering, nanotechnology, chemical, pharmaceutical and other industries.

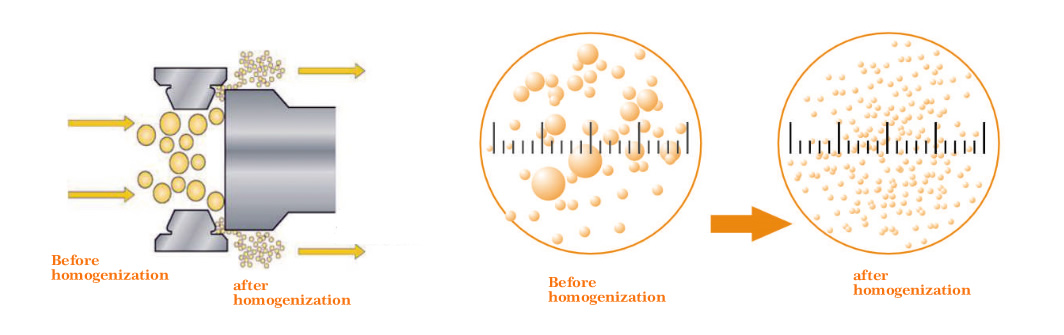

Working Principle
Under high pressure, the material suspension is forced through the narrow adjustable gap of the homogenizing valve at a velocity of 200–300 m/s. When passing through the gap, the material undergoes sudden pressure drop, rapid expansion, intense shearing and high-speed collision with the impact ring. These combined effects thoroughly break down solid particles and oil droplets into micron or submicron scale, achieving uniform emulsification, dispersion and homogenization.
Equipment Types

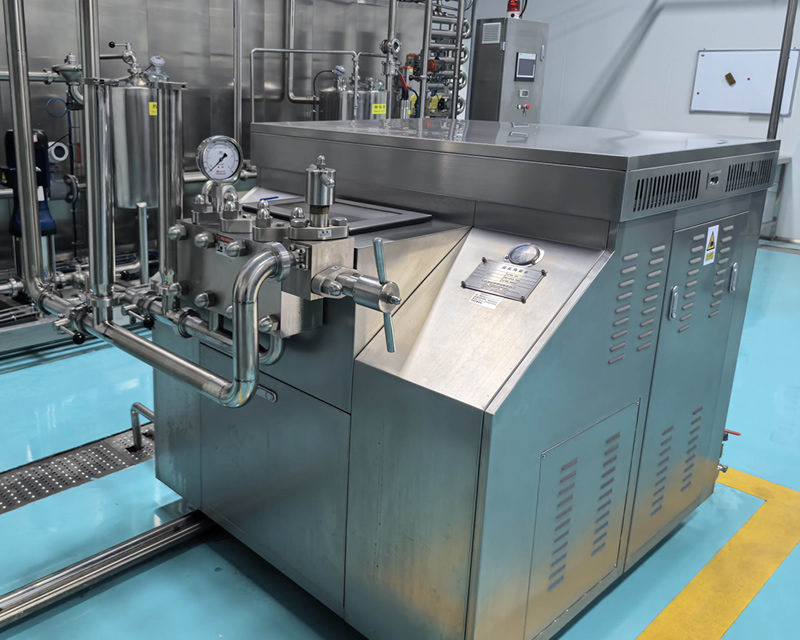

Manual Pressure Regulating Homogenizer
Equipped with a two-stage pressure regulating device, it features reliable performance, convenient operation and no leakage pollution. It consists of handle, spring, top rod and lock nut, and the spring also provides safety protection. It is widely accepted in the market.
Hydraulic Pressure Regulating Homogenizer
This model is fitted with a hydraulic pressure regulating system. The high and low homogenizing pressures are set by adjusting the high and low pressure plunger assemblies. It can also be upgraded with proportional valves to realize remote control.
Pneumatic Pressure Regulating Homogenizer
This model is fitted with a pneumatic pressure regulating system. The high and low homogenizing pressures are set by adjusting the high and low pressure plunger assemblies. It can also be upgraded with proportional valves to realize remote control (on-site air source required).
Technical Parameters
| Flow Rate (L/h) | Pressure (Mpa) | Motor Power (kw) |
|---|---|---|
| 1000 | 25 / 40 / 60 | 7.5 / 15 / 22 |
| 2000 | 25 / 40 / 60 | 15 / 30 / 45 |
| 3000 | 25 / 40 / 60 | 22 / 37 / 55 |
| 4000 | 25 / 40 / 60 | 37 / 45 / 75 |
| 5000 | 25 / 40 / 60 | 45 / 75 / 90 |
| 6000 | 25 / 40 / 60 | 55 / 75 / 110 |
| 8000 | 25 / 40 / 60 | 75 / 110 / 132 |
| 10000 | 25 / 40 / 60 | 90 / 132 / 160 |
Data is for reference only. Specifications can be customized according to actual production requirements.
Application Fields
- Food & beverage industry: Homogenization of dairy products, milk beverages, fruit juice, plant protein drinks, ice cream, sauces and condiments
- Bioengineering & pharmacy: Cell disruption, active ingredient extraction, and preparation of pharmaceutical emulsions and injections
- Chemical & nanotechnology: Preparation of nano-materials, coatings, paints, adhesives, emulsifiers and chemical dispersions
- Other industries: Ultra-fine homogenization processing in daily chemical, cosmetics, pesticide and other industries
