Working Principle

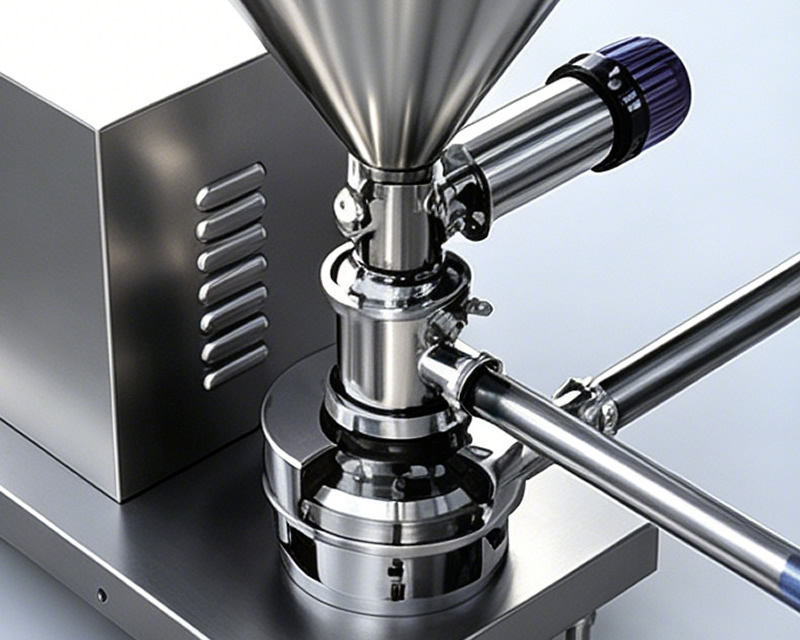

The machine adopts a double-wall pipeline structure to suck liquid and solid materials separately, which prevents them from agglomerating before entering the main mixing chamber.
Liquid flows into the main mixer body at high speed, while a vacuum is generated at the center of the rotor and stator to suck in powdery solid materials. The suction amount of solid materials can be evenly controlled by adjusting the valve below the hopper. Under the high-speed shearing and stirring of the impeller, powder and liquid are fully and rapidly mixed into a uniform mixture, which is then delivered out continuously.
Equipment Features
- Compact & efficient design Unique appearance with lightweight and compact structure, small floor space, energy-saving and high-efficiency performance, supporting fast continuous mixing production.
- Anti-caking feeding structure Double-wall pipeline separates liquid and solid suction, effectively avoiding pre-agglomeration of powder before entering the mixing zone and ensuring stable mixing quality.
- High-speed homogeneous mixing High-speed rotating impeller delivers strong shearing and stirring force, achieving rapid and uniform mixing of powder and liquid with excellent homogenization effect.
- High temperature resistance Supports suction of materials up to 80℃, adaptable to various hot-mixing process requirements in food production.
- Food-grade hygienic construction All product-contact parts are made of food-grade stainless steel, corrosion-resistant and easy to clean, fully complying with food production hygiene standards.
- Easy & flexible operation The powder suction rate can be flexibly adjusted via the valve. The whole machine is easy to operate and maintain with low operation cost.
Technical Parameters
| Specification | Suction Temperature | Impeller Diameter (mm) | Working Pressure (Mpa) | Inlet/Outlet Diameter (mm) | Machine Weight (kg) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| 10T/H | ≤80℃ | 170 | 0.3 | 38 | 112 | 735×500×1005 |
| 20T/H | ≤80℃ | 170 | 0.3 | 51 | 125 | 732×500×1005 |
| 30T/H | ≤80℃ | 170 | 0.3 | 51 | 155 | 732×500×1005 |
The above data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields
- Beverage industry: Mixing of sugar powder, stabilizer, fruit powder and other powder raw materials with liquid in the production of juice, tea beverages, dairy drinks and plant protein drinks
- Food processing: Powder-liquid mixing in the production of condiments, syrup, jam, dairy products and nutritional food
- Daily chemical & chemical industry: Homogeneous mixing of powdery additives and liquid raw materials in daily chemical, chemical and pharmaceutical industries
