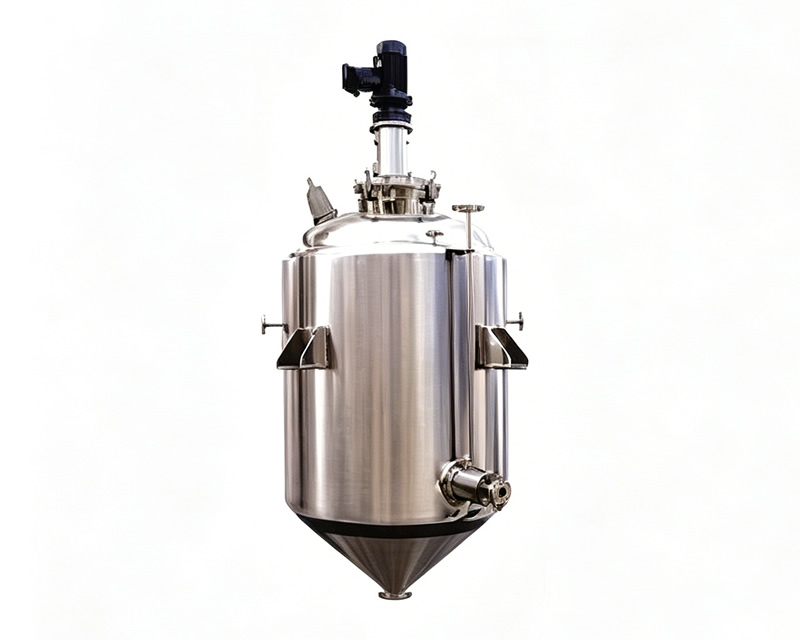

Fabricated with high-quality SUS304-2B stainless steel, the tank is equipped with steam heating jacket and PU polyurethane foam insulation layer for stable temperature control. It integrates extraction, heat preservation and residue discharge functions, with reliable performance and flexible configuration, serving as core equipment for plant active ingredient extraction and deep processing.
Equipment Features
- Multi-process compatibility Supports various extraction processes such as water decoction, warm maceration, forced circulation and percolation, and also realizes recovery and concentration of organic solvents, meeting diverse production process requirements.
- Food-grade hygienic structure Made of SUS304-2B stainless steel with smooth inner wall, corrosion-resistant and easy to clean, fully complying with food and pharmaceutical production hygiene standards.
- Efficient jacketed heating & insulation Steam heating jacket matched with PU polyurethane foam insulation layer ensures uniform heating and excellent heat preservation effect, effectively reducing heat loss and operation energy consumption.
- Complete monitoring configuration Equipped with high and low liquid level sensors and temperature sensors to realize real-time monitoring of liquid level and temperature, ensuring stable and controllable extraction process.

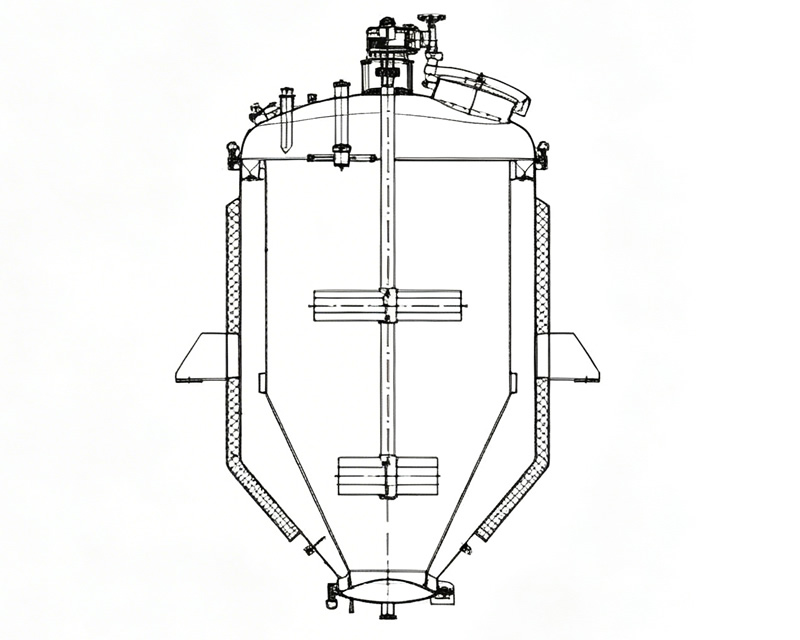

- Reasonable structural design Adopts elliptical upper head and conical lower head with an angle greater than 45 degrees, which ensures smooth residue discharge without dead corners. Extract is discharged from the lower side, and slag is discharged from the bottom, with convenient operation.
- Customizable configuration Standard configured with top central paddle agitator and sealed manhole. Pneumatic discharging structure can be customized according to customer requirements to adapt to different production scenarios.
Technical Parameters
| Model | Effective Volume (L) | Inner Diameter (mm) | Total Height (mm) | PU Insulation Thickness (mm) | Jacket Thickness (mm) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| CQ-500 | 500 | 800 | 2140 | 50 | 1.5 | φ38 / φ51 |
| CQ-1 | 1000 | 1050 | 2380 | 50 | 1.5 | φ38 / φ51 |
| CQ-1.5 | 1500 | 1180 | 2550 | 50 | 1.5 | φ38 / φ51 |
| CQ-2 | 2000 | 1340 | 2760 | 50 | 1.5 | φ38 / φ51 |
| CQ-2.5 | 2500 | 1420 | 2940 | 50 | 1.5 | φ38 / φ51 |
| CQ-3 | 3000 | 1540 | 3050 | 50 | 1.5 | φ38 / φ51 |
| CQ-4 | 4000 | 1650 | 3200 | 50 | 1.5 | φ38 / φ51 |
| CQ-5 | 5000 | 1780 | 3250 | 50 | 1.5 | φ38 / φ51 |
Data is for reference only. Specifications can be customized according to actual production requirements.
Application Fields
- Traditional Chinese medicine industry: Extraction and concentration of active ingredients from Chinese herbal medicines, botanical medicines and natural products
- Biopharmaceutical industry: Extraction, separation and concentration of biological raw materials, pharmaceutical intermediates and active ingredients
- Food & beverage industry: Extraction of plant extracts, natural pigments, fruit and vegetable active ingredients and tea polyphenols
- Essential oil & fragrance industry: Extraction and recovery of plant essential oils, aromatic components and natural spices
- Chemical industry: Extraction, concentration and solvent recovery of chemical raw materials and fine chemical products
