Equipment Features

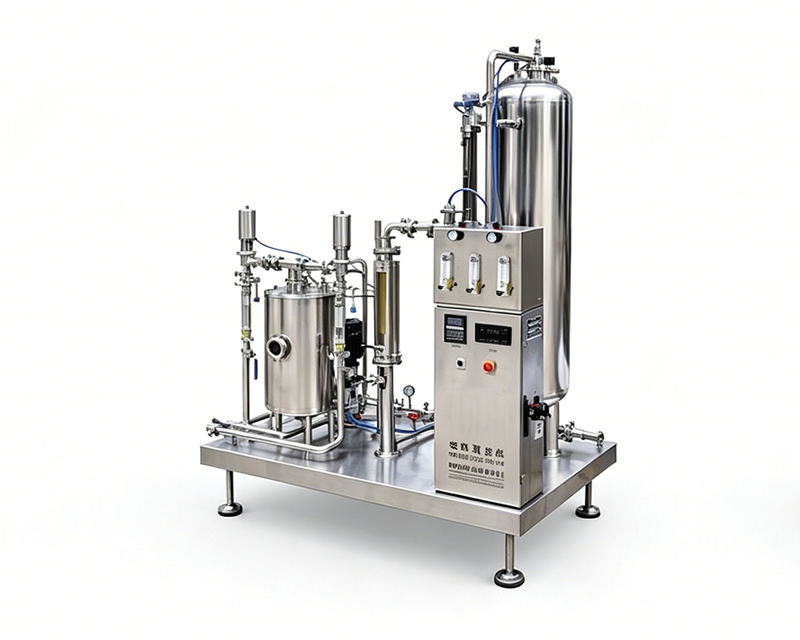

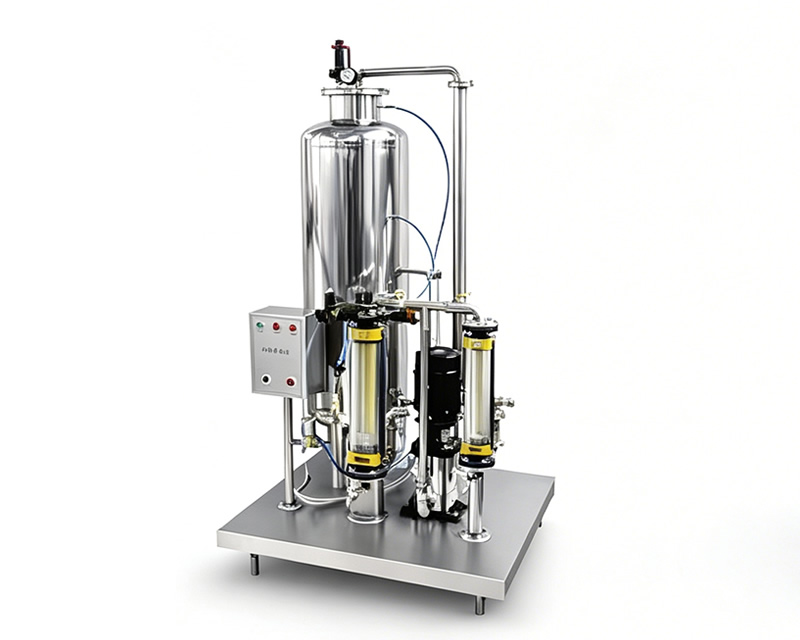

The High-Carbonation Beverage Mixer is a specialized piece of equipment used for the production of carbonated beverages, serving as an indispensable component within a carbonated beverage production line. A key distinguishing feature of this unit—compared to standard carbonated beverage mixers—is its capacity to produce beverages with a significantly higher carbonation level than those produced by conventional mixing equipment. With the exception of electrical components and instrumentation, the entire machine is constructed from food-grade stainless steel; the electrical components, instruments, and related accessories utilized in this unit are sourced from renowned domestic manufacturers.
All parts that come into direct contact with the beverage (such as tanks, pipelines, etc.) are fabricated from high-quality, low-carbon stainless steel. Both the internal and external surfaces undergo a meticulous polishing process, ensuring full compliance with international food hygiene standards.
The pressure and liquid levels within each tank of the machine are automatically regulated. A PLC system controls the entire production process; in the event of a malfunction, the machine automatically triggers an alarm and initiates an emergency shutdown. Once the system is reset, it automatically resumes operation.
The machine is exceptionally convenient to operate; normal production can be initiated simply by turning the control knobs sequentially according to the prescribed procedure. Furthermore, production capacity, the water-to-syrup ratio, and carbonation levels can be easily adjusted without the need to replace any mechanical components.
By employing an advanced “single-pass mixing” process, the machine ensures a highly uniform blend. The mixing ratio of water to syrup is strictly controlled via a precision metering needle valve equipped with fine-tuning capabilities, achieving an accuracy level of approximately 0.5% (5 parts per thousand).
- Advanced carbonation technology Developed with cutting-edge Japanese carbonation technology, it delivers high gas dissolving efficiency and stable mixing performance, ensuring consistent gas content and taste of carbonated beverages.
- Food-grade hygienic design All wetted components are made of premium low-carbon stainless steel, corrosion-resistant and easy to clean, fully meeting international food safety and hygiene standards.
- PLC intelligent control The PLC system accurately controls tank pressure and liquid level in real time, with high mixing precision and stable product quality, reducing manual intervention and operation errors.
- Reliable safety protection Equipped with complete abnormal monitoring and alarm mechanism, it automatically stops operation immediately when faults occur, effectively safeguarding production safety and equipment reliability.
- Compact integrated structure Skid-mounted integrated design with compact layout and small floor space. It is easy to install, debug and maintain, suitable for beverage production lines of different scales.
- Flexible ratio adjustment Wide adjustable range of sugar-water ratio and soda-water ratio, adaptable to different beverage formulas and production process requirements.
Working Principle
The equipment realizes precise mixing of chilled water, syrup and carbon dioxide under controlled pressure and temperature conditions.
Chilled water and syrup are fed into the mixing system at a preset ratio, and then fully mixed with high-purity carbon dioxide under stable pressure. The PLC system precisely monitors and regulates the internal pressure, liquid level and flow rate of the tank to ensure uniform and stable dissolution of carbon dioxide in the liquid, achieving high-precision mixing effect. The finished carbonated liquid is continuously delivered to the subsequent filling process.
Technical Parameters
| Models | ZL-1000 | ZL-2000 | ZL-3000 | ZL-5000 |
| Output (L/h) | 1000 | 2000 | 3000 | 5000 |
| Sugar water ratio | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 |
| Steam to water ratio | >2.5 | >2.5 | >2.5 | >2.5 |
| Mixing accuracy (%) | <2 | <2 | <2 | <2 |
| Cold water entry temperature (℃) | 0-4 | 0-4 | 0-4 | 0-4 |
| Enter the cold water pressure (Mpa) | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 |
| Syrup entry temperature (℃) | 2-8 | 2-8 | 2-8 | 2-8 |
| Syrup enters the pressure (Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.25 | 0.1-0.3 |
| CO₂ enters the pressure (Mpa) | 0.7-0.8 | 0.7-0.8 | 0.7-0.82 | 0.7-0.82 |
| CO₂ purity (%) | 99.9 | 99.9 | 99.9 | 99.9 |
| Discharge working pressure (Mpa) | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 |
| Motor power (kw) | 2.2 | 3.5 | 5.9 | 6.3 |
| Equipment size (mm) | 1500x1000x2000 | 1600x1600x2100 | 2150x1700x2300 | 2300x1850x2450 |
| Equipment weight (kg) | 1200 | 1350 | 1500 | 1950 |
Data is for reference only. Specifications are subject to change without prior notice due to technical upgrading.
Application Fields
- Carbonated beverage industry: Production of cola, lemon-lime soda, fruit-flavored carbonated drinks, sparkling water and various soda beverages
- Beverage processing: Carbonation and mixing of sparkling fruit drinks, functional sparkling drinks and other gas-containing beverages
- Other industries: Production of gas-containing liquid products in food, daily chemical and other related industries
