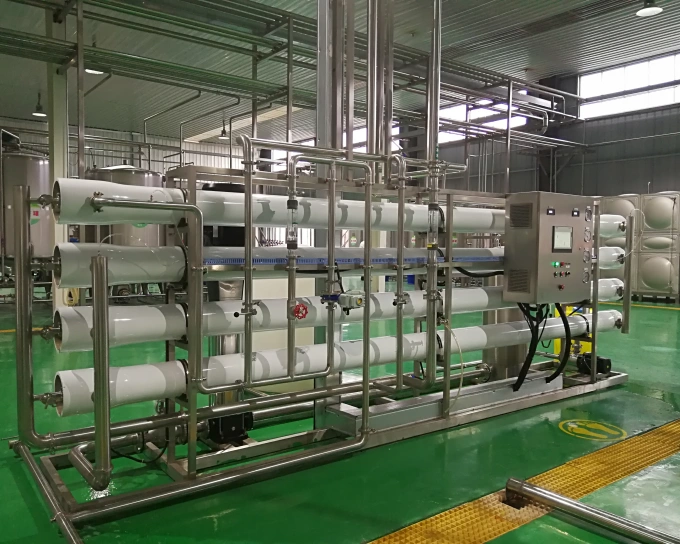

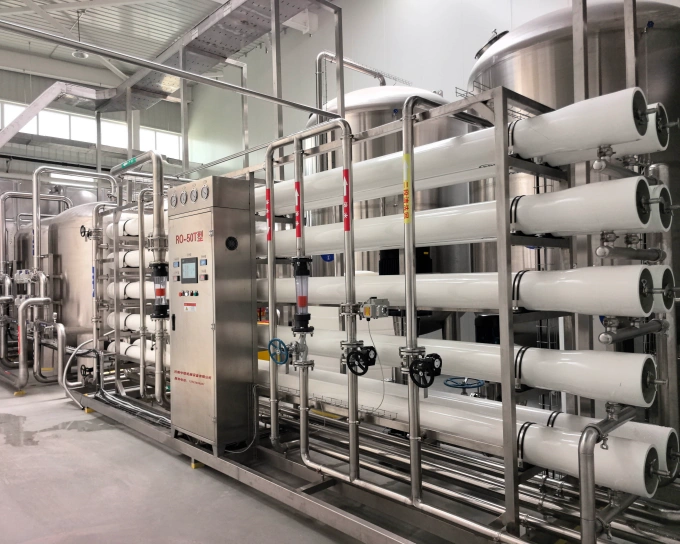

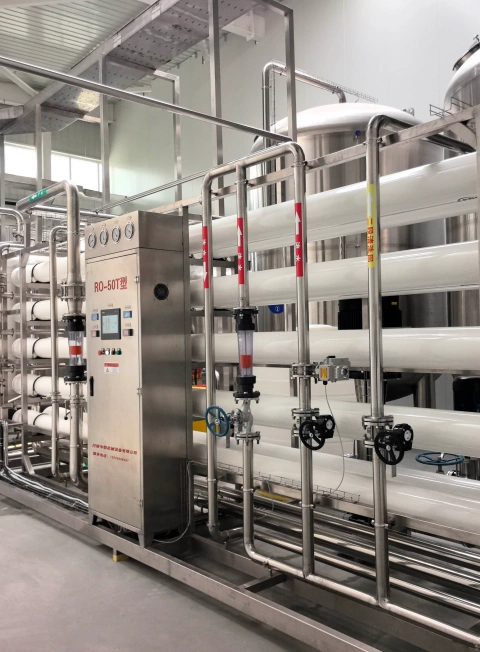

Product Overview
This medium-scale RO system is designed for medium-capacity production in food and beverage industries, covering 3T/H, 6T/H and 10T/H specifications. It adopts modular skid-mounted structure and food-grade 304 stainless steel materials. Fitted with industrial membranes and PLC automatic control system, the equipment runs stably around the clock. Single-stage or double-stage RO processes are available on request. It can fully satisfy the water demand of medium beverage factories, breweries, dairy plants and related processing enterprises.
Equipment Principle
Based on the selective separation feature of semipermeable membranes, the system uses a high-pressure pump to push raw water to pass through RO membranes under 1.2–1.5 MPa pressure. Water molecules permeate the membrane to form purified water, while salts, colloids, bacteria and other impurities are intercepted and discharged with concentrate.
Matched with 8040 spiral-wound membranes, the system achieves a desalination rate over 98% and a recovery rate of 60%–70%. Single-stage RO meets regular water needs, while double-stage RO provides high-purity water with conductivity below 2 μS/cm. The whole system is under automatic control with complete safety protection functions.
Process Flow

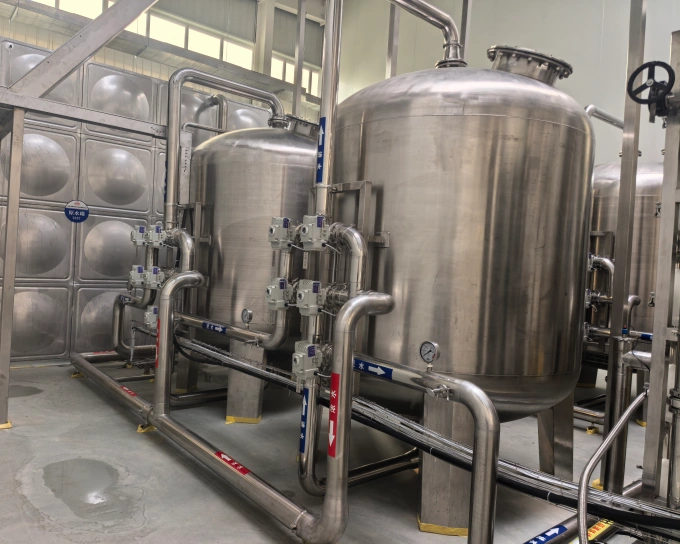

Raw Water → Raw Water Tank → Raw Water Boost Pump → Multi-media Filter → Activated Carbon Filter → Sodium Softener / Scale Inhibitor Dosing System → 5μm Security Filter → High Pressure Pump → RO Membrane Array (Multi-stage Arrangement) → Pure Water Tank → Water Supply Pump → UV Sterilization + Ozone Disinfection → Production Water Distribution Network
Equipment Features
Heavy-duty industrial configuration
Equipped with industrial-grade 8040 reverse osmosis membranes and brand high-pressure pumps, designed for 24/7 long-term continuous operation.
PLC intelligent control
Standard PLC programmable system with touchscreen HMI, intuitive operation and complete automatic operation logic.
High water recovery rate
Optimized multi-stage membrane arrangement, recovery rate up to 60–70%, lower water consumption and operation cost.
Food-grade stainless steel structure
All wetted parts are made of 304 stainless steel, no sanitary dead corners, complying with food production safety standards.
- Fully automatic unattended operation: Liquid level linked start-stop, automatic dosing, regular automatic flushing, no special personnel required on duty.
- Multiple safety protection mechanisms: High and low pressure protection, overload protection, water shortage protection, leakage protection and fault alarm.
- Modular skid-mounted design: Factory pre-assembled and debugged, fast on-site installation, convenient for overall relocation and capacity expansion.
- Flexible process configuration: Single-stage / double-stage RO optional, expandable with EDI ultra-pure water module, online monitoring and remote IoT functions.
- Low operation and maintenance cost: Scientific membrane flow design reduces fouling speed, convenient replacement of consumables, low daily maintenance cost.
- Customized adaptation scheme: Pretreatment configuration can be adjusted according to raw water quality, adapting to well water, tap water, surface water and other water sources.
Technical Parameters
| items | ZL-RO-3.0 | ZL-RO-6.0 | ZL-RO-10.0 |
|---|---|---|---|
| Production Capacity | 3 m³/h | 6 m³/h | 10 m³/h |
| RO Membrane Model | 8040 | 8040 | 8040 |
| Membrane Quantity | 3 pcs | 6 pcs | 10 pcs |
| High Pressure Pump Power | 4.0 KW | 7.5 KW | 11 KW |
| System Desalination Rate | ≥98% | ≥98% | ≥98% |
| System Recovery Rate | 60–65% | 60–68% | 65–70% |
| Working Pressure | 1.2–1.4 MPa | 1.2–1.5 MPa | 1.3–1.5 MPa |
| 1st Stage RO Effluent Conductivity | ≤10 μS/cm | ≤10 μS/cm | ≤10 μS/cm |
| 2nd Stage RO Effluent Conductivity | ≤2 μS/cm (optional) | ≤2 μS/cm (optional) | ≤2 μS/cm (optional) |
| Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Total Installed Power | ~6.0 KW | ~10 KW | ~15 KW |
| Overall Dimensions | 2200×800×1800mm | 2800×900×1850mm | 3500×1000×1900mm |
| Operating Weight | ~700 kg | ~1200 kg | ~1800 kg |
Application Fields
Food & Beverage Industry
- Medium-sized bottled water / barreled water production lines
- Production water for juice, tea beverages, carbonated drinks and functional beverages
- Water for brewing and blending of beer, liquor, rice wine and fruit wine
- Production water for dairy products, yogurt, milk beverages and bean products
- Processing water for bakery food, condiments, snack food and prepared food
- Production water for central kitchens and catering chain distribution centers
Other Industrial & Commercial Applications
- Pure water for medium-sized pharmaceutical and health product production
- Process water for daily chemical and cosmetic manufacturing
- Boiler make-up water for medium-sized factories and power stations
- Pure water supply for electronic component processing and electroplating industry
- Centralized water supply for industrial parks and economic development zones
- Direct drinking water projects for schools, hospitals and large office buildings
