Client Background
PureAqua Waters is an emerging packaged drinking water brand based in Lagos, Nigeria. With the rapid growth of demand for safe drinking water in local communities and commercial scenarios, the brand planned to build a full-scenario product matrix: small-sized bottled purified water (500ml, 1.5L) for convenience stores and supermarkets, and 18.9L barreled purified water for office buildings, factories and household users.
With no previous experience in large-scale drinking water production, the client sought a one-stop turnkey supplier that could deliver plant design, equipment manufacturing, installation, commissioning and staff training as a complete package.
Core Challenges
- Complex raw water quality: Local municipal water supply has high TDS (total dissolved solids) and fluctuating turbidity and microbial indicators, requiring a stable and reliable deep purification process.
- Cost control demand: The client hoped to avoid repeated investment in core water treatment equipment, and improve equipment utilization through a shared system to reduce overall project cost.
- Full service requirement: Lacking professional operation and maintenance teams, the client needed systematic technical support from plant layout to daily production management.
Integrated Dual-Line Turnkey Solution from Allylinkmachine
The technical team of Henan Allylink Machinery Equipment Co., Ltd. designed an intensive “shared water treatment + separate filling” solution tailored to the client’s business positioning. Raw water is purified through a complete pretreatment and single-stage RO reverse osmosis system, then divided into two paths to supply the bottled water line and barreled water line simultaneously. This design maximizes the utilization rate of core equipment and effectively lowers initial investment, while the whole line fully complies with the drinking water production standards of Nigeria NAFDAC and WHO.
Table 1: Core Equipment Configuration
表格
| System Category | Equipment Name | Specification | Core Function |
|---|---|---|---|
| Shared Water Treatment System | Multi-media Quartz Sand Filter | 10T/h | Remove sediment, suspended solids and reduce raw water turbidity |
| Activated Carbon Filter | 10T/h | Adsorb residual chlorine, odor and organic impurities | |
| Water Softener | 10T/h | Reduce water hardness and prevent RO membrane scaling | |
| Security Precision Filter | 5μm | Pre-filter protection to extend RO membrane service life | |

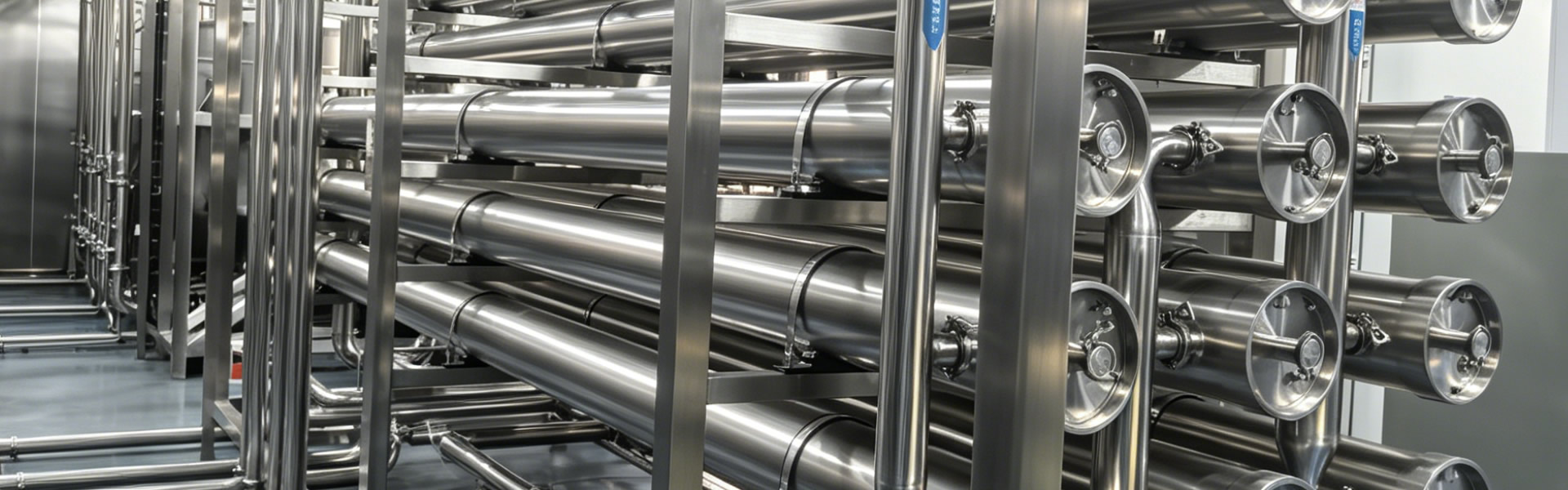

| Single-stage RO Reverse Osmosis Unit | 10T/h | Deep desalination, remove heavy metals, bacteria and dissolved solids | |
| Aseptic Pure Water Tank | 10000L | Hygienic storage of finished purified water | |
| Ozone Sterilization System | 10g/h | Pipeline and water body sterilization, ensure long-term biological safety | |
| Bottled Water Production Line | 3-in-1 Bottle Washing-Filling-Capping Machine | 8000BPH (500ml) | Integrated PET bottle rinsing, constant-pressure filling and screw capping |
| Automatic Sleeve Labeling Machine | 8000BPH | Full-body heat shrink label application | |
| Industrial Inkjet Printer | — | Mark production date, batch number and shelf life | |
| Film Shrink Wrapping Machine | 8000BPH | Pack bottles into 12-unit bundles for logistics | |
| Barreled Water Production Line | Automatic Barrel Brushing & Washing Machine | 120 barrels/h | 360° inside and outside cleaning of recyclable 18.9L barrels |
| Barrel Filling & Capping Machine | 120 barrels/h | Quantitative filling and automatic cap pressing | |
| Barrel Dust-proof Bagging Machine | 120 barrels/h | Finished barrel packaging for clean storage and transportation |
Project Implementation & Full-Cycle Service
The whole project was delivered and put into formal production within 50 days in strict accordance with the agreed schedule:
- Days 1–10: On-site demand confirmation, plant layout design and process scheme finalization
- Days 11–30: Equipment manufacturing, international logistics and customs clearance support
- Days 31–45: On-site equipment installation, pipeline connection and full-line commissioning
- Days 46–50: Water quality debugging, systematic operation & maintenance training, and final acceptance
Allylinkmachine also provides 1-year full machine warranty, 24/7 online technical support and long-term spare parts supply service for the client.
Project Outcomes & Operational Performance
Table 2: Key Operation Indicators
表格
| Indicator | Actual Operating Data |
|---|---|
| Bottled water capacity (500ml PET) | 8,000 bottles per hour |
| Barreled water capacity (18.9L standard barrel) | 120 barrels per hour |
| Purified water conductivity | ≤10μS/cm, exceeds WHO drinking water standard |
| Microbiological test pass rate | 100% |
| Bottled water product pass rate | 99.3% |
| Barreled water product pass rate | 99.5% |
| Investment cost saving vs. independent lines | ~28% |
| Covered channels (6 months after launch) | 130+ retail outlets + 45 enterprise & household customers |
Client Feedback
“Allylinkmachine’s shared design is really smart — we got two complete production lines at a much lower cost than we expected. The RO system perfectly adapts to the local water quality, and the water quality test results are always stable, which helped us pass the NAFDAC certification smoothly at one time. Their engineers stayed on site to train our team patiently until everyone mastered the operation and daily maintenance. In just half a year, our products have covered most of the main areas of Lagos, and we are already planning the second phase of capacity expansion with them.”
